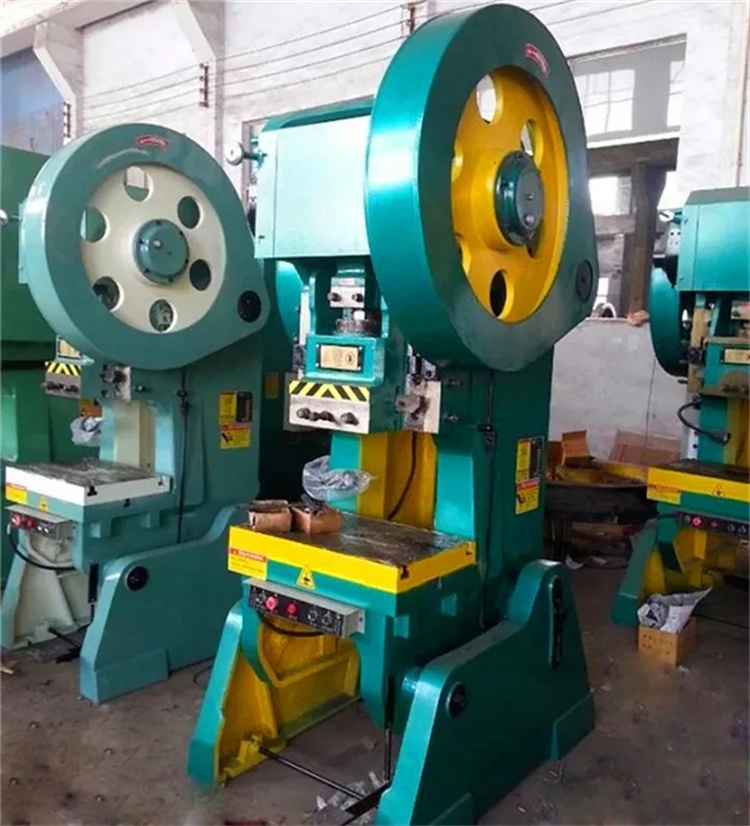

200 ton J23 c press mechanical punching machine

Hem / Produkter / 200 ton J23 c press mechanical punching machine

Funktioner

  • J23 series are general open-tilting power press with simple structure ,reliable performance and easy operation .J23 can adopt rigid turn-key clutch .
  • So, it is convenient for operation and maintenance .J23 can also adopt emergency stop service to make the slider block suddenly stop on the range of 0-135 degree,and the photoelectrical protector device is optional .
  • J23-100B and J23-125 are special among the J23 series .Their main body is cast in iron .The cranked axle is settled vertically .Eccentric sleeve makes easy adjustment .And there is also pneumatic friction.Therefore ,J23-100B and J23-125 enable to work with small impact and sationarity and make slider block stop at any position .

Ansökningar

Specifikation

Specifikation
Enheter
JB23-40
JB23-63
JB23-63A
Nominellt tryck
KN
400
630
630
Nominell kraftslag
mm
4
4
4
Skjutslag
mm
80
80
80
Antal skjutreglage
gånger/min
50
50
50
Maximal formsatshöjd
mm
230
250
300
Höjdjustering av matrisset
mm
45
50
50
Avstånd från skjutreglagets mitt till ram
mm
220
250
250
Arbetsbordsdimension
mm
390 x 630
420 x 650
470 x 750
Arbetsbordspanelens tjocklek
mm
70
70
80
Storlek på handtagshålet
(diameter x djup)
mm
φ50x70
φ50x70
φ50x70
Vertikala kolumner avstånd
mm
330
320
390
Huvudmotor
Modell
Y112M-4
Y132S-4
Y132S-4
Kraft
KW
4
5.5
5.5
Maximal lutningsvinkel på kroppen
°
25
25
25
Total dimension (LxBxH)
mm
1600X1100X2250
1740X1100X2560
1740X1180X2560
Vikt
Kg
2960
3800
4300
